Electromagnetic Resonance (EMR) Pen Touch Module with Screen

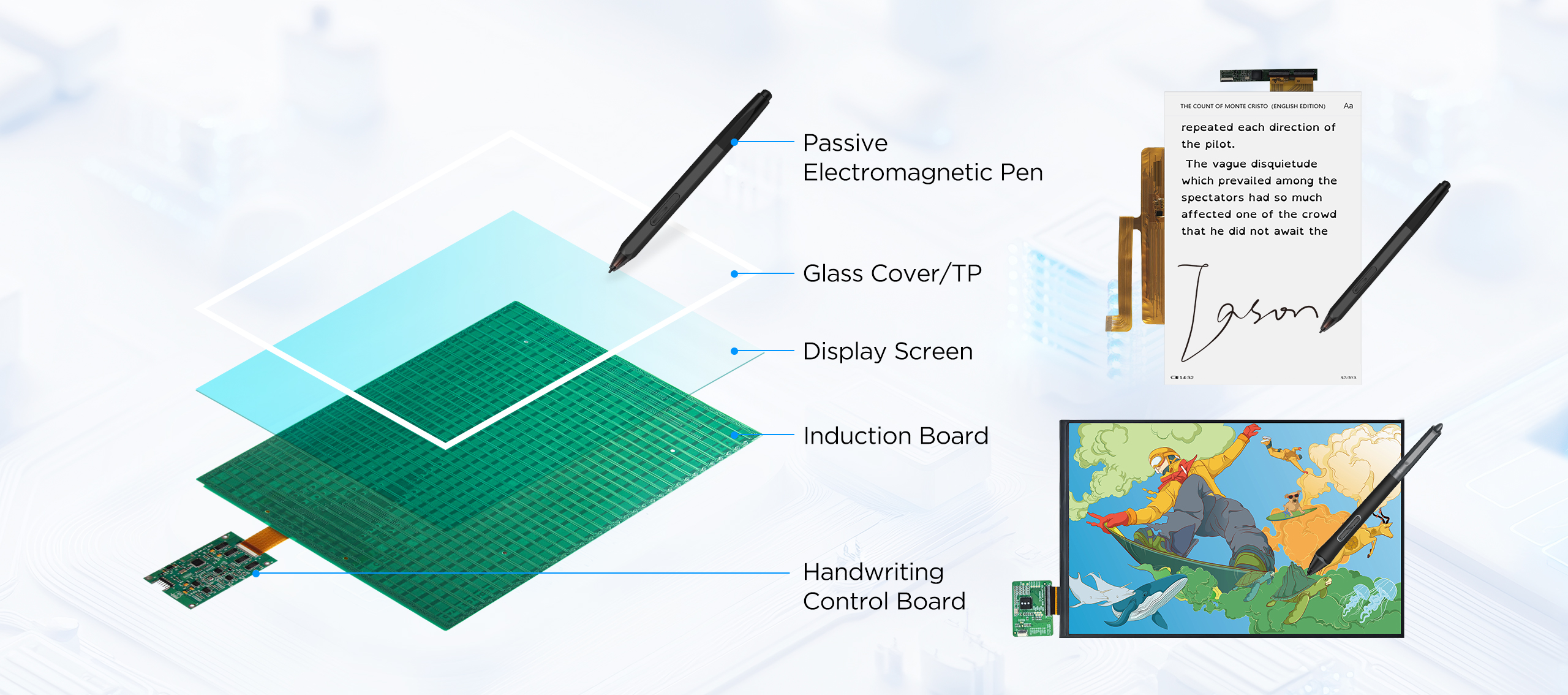

The basic principle of electromagnetic touch screen: an electromagnetic pen emits electromagnetic signals to interact with the electromagnetic induction board behind the display screen. When the electromagnetic pen is close to the touch screen, the electromagnetic induction board behind the touch screen will sense the electromagnetic signal of the pen, causing the induction line under the electromagnetic induction board to change. Then, the antenna array in the horizontal and vertical directions receives the signal, and the X and Y coordinates of the pen are calculated through the change of magnetic flux.

Product features of electromagnetic screen

(1) Inductive handwriting solution, the stroke reproduction resolution is up to 5080 LPI;

(2) The world's most advanced 2048-level pressure sensitivity allows you to change the thickness and thickness of your strokes as you wish;

(3) With a stroke processing speed of up to 200 dots/second, the pen can be swung freely without interruption;

(4) The accuracy is as high as plus or minus 0.254mm, ensuring the position of the pen is accurate every time;

(5) The writing angle can be changed to plus or minus 45 degrees, making the operation very comfortable;

(6) It can be equipped with LCD screens of various specifications ranging from 10.1" to 21.5", with clear resolutions ranging from 1280*800 to 1920*1080;

(7) High-strength tempered glass can be installed to enhance the screen's resistance and service life;

(8) The LVDS interface of the LCD screen can be connected to the VGA output signal;

(9) Plug and play via computer USB interface

Electromagnetic Resonance (EMR) Pen Touch Module

Working principle of electromagnetic handwriting tablet: When the wiring circuit located under the handwriting tablet is energized, an electromagnetic field will be formed within a certain spatial range, sensing the position of the pen tip with a coil, thereby recognizing handwriting.

Product features of electromagnetic tablet

(1) Inductive handwriting solution, the resolution of the original stroke reproduction is up to 5080LPI;

(2) With the world's advanced 2048-level pressure sensitivity, you can change the thickness and thickness of your strokes as you like;

(3) The stroke processing speed is up to 200 points/second, the pen can be swung freely without interrupting the pen speed;

(4) The accuracy is up to plus or minus 0.254MM, which satisfies your accurate position every time you put your pen down;

(5) It is easy to integrate with other touch technologies without affecting the transmittance;

(6) The main application markets include: pen-type tablets which use the most USB interfaces, tablet displays, electronic whiteboards, e-commerce signature tablet, POS machines, etc.
